Baopin Machinery Ice Maker

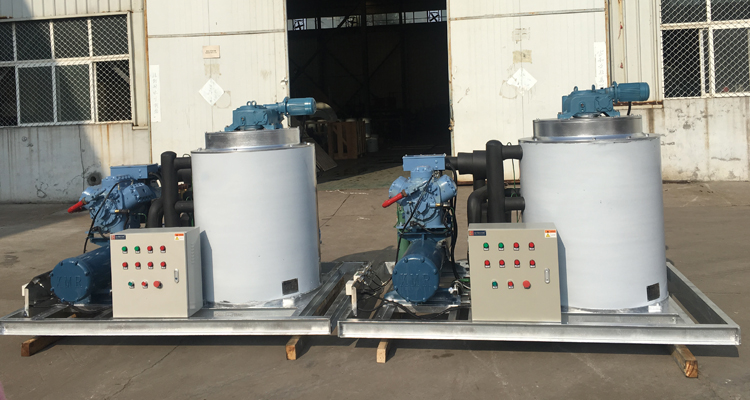

25T Flake Ice Machine
25T Flake Ice Machine

25T Flake Ice Machine

Model:BP-25T

Capacity:25000KG

Ice Storage: No ice bin

Voltage:380V

Power:97.8KW

Cooling: Air cooling

Dimension: 3690*2090*2485mm

Ice shape: Flake Ice

TEL:008618638000025
Details

Due to the advantages of high refrigeration efficiency and large ice output, large industrial flake ice machine is widely used in industrial production, or self-built ice factory and other occasions. In areas with sufficient water resources, it is recommended to choose a water cooling system flake ice making machine. Since the cooling effect of the air cooling system is relatively poor, it is only suitable for use in areas with scarce water resources.

5T flake ice machine 2.jpg

Flake ice machine application


Flake ice machine is avaliable forwestern restaurant,hotels,supermarkets,fisheries,aquatic seafood,cold storage,food factories,factory cooling,vegetable preservation,light industry,chemical industry.


Flake ice maker Feature


1.5 min fast ice making.

2.Intellignt control,One-button start.

3.International brand compressors.

4.Large ice storage,capacity from 150Kg,304 stainless steel,safe enough.

5. Directly liquid feeding, dry-type evaporation make simple, safe and reliable control.

6. Integrated modular equipment to facilitate installation and maintenance on the spot.

7. Make ice from fresh water or seawater, installs on land or onboard vessels.

8. Ice thickness can be varied by changing the speed of the rotor.


Ice flake machine more specification:


ModelOutput (KG/24Hr)Ice StorageVoltageCondenser UnitPower (W)RefrigerantDimension(L*W*H)Gross weight
BP-0.2T200KG150KG220/110V 50/60HZAir cooling1.5KWR404A800*800*1665mm110KG
BP-0.3T200KG150KG220/110V 50/60HZAir cooling1.76KWR404A800*800*1665mm150KG
BP-0.4T400KG200KG380VAir cooling2.16KWR404A800*850*1830mm170KG
BP-0.5T500KG400KG380VAir cooling2.88KWR404A1320*1180*1905mm220KG
BP-0.8T800KG400KG380VAir cooling4.76KWR404A1320*1180*2005mm240KG
BP-1T1000KG400KG380VAir cooling4.76KWR404A1320*1180*2005mm270KG
BP-1.2T1200KG400KG380VAir cooling5.6KWR404A1320*1180*2005mm290KG
BP-1.4T1400KG500KG380VAir cooling6.38KWR404A1320*1250*2085mm340KG
BP-1.5T1500KG500KG380VAir cooling7.42KWR404A1320*1250*2085mm370KG
BP-2T2000KG600KG380VAir cooling9.25KWR404A1500*1380*2380mm450KG
BP-2.5T2500KG600KG380VAir cooling10.32KWR404A1500*1380*2500mm450KG
BP-3T3000KG800KG380VAir cooling12.91KWR404A1550*1380*2550mm570KG
BP-5T5000KG5000KG380VAir cooling23.12KWR404A1800*1800*3410mm770KG
BP-10T10000KGNo ice bin380VAir cooling45.5KWR404A2530*1830*1835mm1550KG


*
*
*
